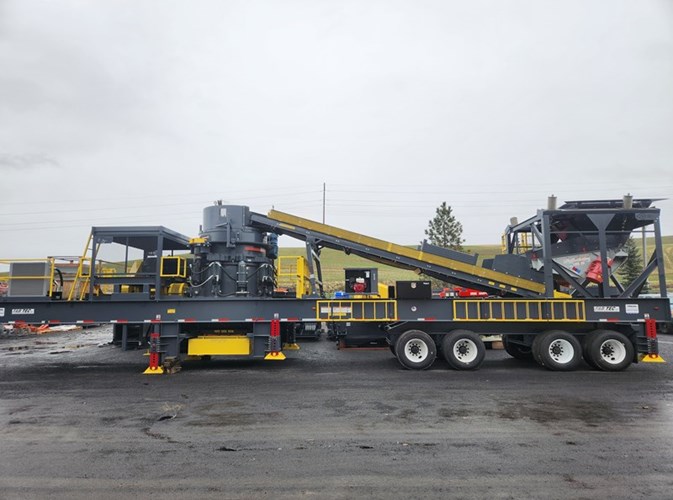

2026 FABTEC Crusher - Cone P400SBRFSD
Fields with asterisks * are required.
Print This Page
Description
SURGE BIN REAR FEED SIDE DISCHARGE
Inventory ID
E00072732
Serial
PC-4-545-26
Machine Status
Equipment is on rent
Contact your Salesperson for more information
Contact your Salesperson for more information
Details
- Inventory ID: E00072732
- Status: On Rent
- Make: FABTEC
- Model: P400SBRFSD
- Year: 2026
- Serial#: PC-4-545-26
Notes
- FABTEC/SUPERIOR PORTABLE P400 CONE PLANT WITH 48" SIDE FOLD CONE CONVEYOR AND 42" FEED CONVEYOR WITH SURGE BIN PAN FEEDER EQUIPPED PER THE BELOW:
- - SUPERIOR P400 CONE
- MOUNTING PROVISION FOR HYDRAULIC CONSOLE
- 400 HP @ 1200 RPM TOSHIBA TEFC CONE MOTOR: (5010UZ FRAME) - REVERSE CRUSHER MOTOR ENCLOSED DRIVE BELT GUARD AND BELT DRIVE:
- INSPECTION/ CLEANOUT DOORS
- WALK-IN STYLE INCORPORATED WITH OBSERVATION DECK - HEAVY DUTY CONE MOUNT AND AR LINED UNDER CONE DISCHARGE HOPPERWITH 1/2" X 6"
ADJUSTABLE WIPERS - STANDARD CONE FEED RING WITH EXPANDED METAL WINDOWS
-STANDARD HOLD-DOWN BRACKETS INCLUDED - 48" - REVERSIBLE SIDE-FOLD UNDER CONE CONVEYOR:
- SEW KA87 15 HP RIGHT ANGLE DRIVE ~VS~ CONVENTIONAL DRIVE
- INCLUDES TYPE œE" BEARINGS ON HEAD PULLEY
- 14" VULCANIZED LAGGED HEAD PULLEY 12" SELF-CLEANING WING TAIL PULLEY
- 3 PLY BELT 1/4" COVER 2 7/16" DODGE SCM BEARINGS
- CLOSE SETTING ON CEMA C IDLERS UNDER CONE THEN 36" SPACING
- EXTENDED LENGTH TO BE AS LONG AS POSSIBLE WITH FOLDING HEIGHT
- HYDRAULIC FOLD FOR TRANSPORT
- ORANGE GUM RUBBER FLASHING
- RUBBER DISC RETURNS
- VULCANIZED SPLICE
- SUPERIOR EXTERRA WIPER - 42" X 26- CONE FEED CONVEYOR:
- SEW KA87 15 HPRIGHT ANGLE DRIVE ~VS~ CONVENTIONAL DRIVE:
- INCLUDES TYPE œE" BEARINGS ON HEAD PULLEY.
- 3 PLY BELT 2 15/16" DODGE SCM BEARINGS.
- FAB TEC HEAVY DUTY STYLE IMPACT AREA THEN 36" SPACING ON CEMA C IDLERS.
IMPACT BARS ON THE SIDEAND IMPACT ROLLERS IN THE CENTER.
- 14" VULCANIZED LAGGED HEAD PULLEY 12" SELF-CLEANING WING TAIL PULLEY.
- ORANGE GUM RUBBER FLASHING
- RUBBER DISC RETURNS
- VULCANIZED SPLICE
- SUPERIOR EXTERRA WIPER
- HYDRAULIC RAISE & LOWER OF CONE FEED CONVEYOR TO GIVE ADEQUATE CLEARANCE TO
REMOVE UPPER BOWL ASSEMBLY. - SURGE BIN WITH PAN FEEDER:
- SIMPLICITY VM-4896 PAN FEEDER WITH SUSPENSION SPRINGS
- TO FEED ONTO CONE FEED CONVEYOR
- 3/8" PLATE SIDES 6" X 6" X 1/2" ANGLE AND 6/15# WFSUPPORTS
- SURGE HOPPER LINED WITH TRICON TRI-BRAZE WEAR LINERS
- 1/2" BOLT IN WEAR LINERS IN MIDDLE SECTIONS
- 3/8" BOLT IN WEAR LINERS ON THE SIDE WALLS
- HIGH ABRASION WEAR LINERS WITH COUNTERSUNK RETENTION HARDWARE - TANDEM/TANDEM AXLE ARRANGEMENT: SPLIT TANDEM AXLE DESIGN WITH 24" WF 76# BEAMS:
- RIDE RITE AIR RIDE SUSPENSION
- 25 000# AXLES AND 11:00RX22.5 TIRES
- AIR BRAKES
- LED MARKER LIGHTS
- LED BRAKE LIGHTS
- LED STROBE LIGHT
- MUD FLAPS
- REFLECTIVE TAPE
- SIX GROUND SUPPORT STANDS WITH JACKING LEGS - PROVISION FOR 9- WIDE TRAILKING TKAB1 OR TKAB2 BOOSTER
- - SAFETY GUARDS SAND BLASTED CHASSIS RUST INHIBITOR PRIMER AND TWO FINISH
COATS INCLUDED - INCLUDED OPTIONS:
- 6 LEG FAB TEC 70K RUN-ON SYSTEM KIT
- 18" STROKE CYLINDERS 70 000 LB. CAPACITY (AT 2500 PSI) WITH SAFETY-LOK
CIRCUIT
- (1) SPOOL VALVE~ NUMBER OF BANKS TO MATCH LEG QUANTITY
- CYLINDER MOUNTING PLATES & HARDWARE
- HEAVY DUTY FOOT PADS - SELFCONTAINED HONDA 8 HP HYD. POWER PACKAGE ~VS~ HPX 200 12V:
- ELECTRIC START
- 12 GALLON HYDRAULIC RESERVOIR WITH FILTER PROTECTION
- 2 1/2 GPM PUMP - OBSERVATION STAND INCORPORATED INTO WALK-IN DRIVE GUARD:
- FOR EASY CONE DRIVE MAINTENANCE AND CONE FEED OBSERVATION
- A USER-FRIENDLY RECOMMENDATION
- ACCESS PANELS ON 3 OUTER SIDES - ADDITIONAL FRONT PLATFORM IN FRONT OF CONE MOTOR:
- PLATFORMS ON EACH SIDE OF PAN FEEDER WITH HANDRAILS AND LADDERS ON BOTH SIDES
- FALL PROTECTIONCABLE SYSTEM AROUND CONE FOR CONE MAINTENANCE
- (2) LARGE TOOL BOXES MOUNTED ON CHASSIS - SPECIAL REVERSE MOUNTED JACK SHAFT DRIVE FOR 400 HP:
- RAPTOR COUPLING
- (2) 4 7/16" TYPE ˜E- BEARINGS
- 4 7/16" ALLOY SHAFT
- ADDED STEEL FOR LOWER BEARING/ SHEAVE MOUNT
- ADDED GUARDING
- COGGED BELT DRIVE WITH SUPERIOR COUNTERSHAFT BLOWER FOR DRIVE PRESSURIZATION - - ADJUSTABLE MAGNET STAND ON FEED CONVEYOR FOR 12PSM 6 CONE PROTECTION MAGNET
ACCESS LADDER FOR MAGNET CLEANING - - GUARDING - WE DO NOT WARRANT THAT MANUFACTURERS- GUARDING WILL MEET ALL LOCAL
CODES. IT IS THE RESPONSIBILITY OF THE END USER TO HAVE GUARDING CHECKED BY A
LOCAL INSPECTOR PRIOR TO STARTUP OF EQUIPMENT OPERATIONS CORRECTIVEACTIONS
AND ASSOCIATED EXPENSE ARE THE RESPONSIBILITY OF THE END USER
